Zephyr: Threads and Kernel Events

BME554L -Fall 2025 - Palmeri

Author
Affiliation

Dr. Mark Palmeri, M.D., Ph.D.

Duke University

Published

Invalid Date

Threads

  • Threads are the basic unit of execution in Zephyr.
  • Threads are scheduled by the kernel.
  • Threads can be in one of three states:
    • Ready: The thread is ready to run.
    • Running: The thread is currently running.
    • Blocked: The thread is waiting for an event to occur.

We’ve Already Used Threads

  • Main thread
  • Kernel timer threads

But we can define our own threads for a variety of purposes!

  • Wait for a task to complete, then do something else.
  • Example: Wait for data to save to an SD card, then do something else, but don’t want the kernel to wait.

Example Use Case: Heartbeat LED Toggle at 25% Duty Cycle

  • This is not as easy to implement with a single kernel timer.
  • But we can use a thread to toggle the LED at 25% duty cycle and not hit the kernel to do so:
/* 1024 byte stack, handler, NULL, NULL, NULL, priority 5, no time slice, no delay */
K_THREAD_DEFINE(heartbeat_thread_id, 1024, error_thread, NULL, NULL, NULL, 5, 0, 0);

extern void heartbeat_thread(void *, void *, void *) {

    while (1) {
        k_msleep(250);  // scheduler can run other tasks now
        gpio_pin_toggle_dt(&heartbeat_led);
        k_msleep(750); // scheduler can run other tasks now
        gpio_pin_toggle_dt(&heartbeat_led);
    }

}

How to Suspend/Resume Threads

k_thread_suspend(heartbeat_thread_id);
k_thread_resume(heartbeat_thread_id);

Threads vs. Timers

  • The thread can have blocking calls (e.g., k_msleep) without blocking other threads.
  • The scheduler can run other threads while this thread is sleeping (or yields).
  • The scheduler can preempt the thread at any time with higher priority tasks (e.g., ISR callbacks, higher-priority threads).
  • No need for a separate handler function.
  • More difficult to start/stop/reset than a timer.
  • Need explicitly allocated stack space.
  • Difficult to coordinate high-accuracy timing with other tasks/threads.

Kernel Events

  • Kernel events can be used to indicate that “something” has happened, which may dictate the function of the state machine.
    • Button press
    • Sensor crossing a threshold
    • Timer expiring
  • Enabled in prj.conf with CONFIG_EVENTS=y.

Kernel Event Bit Arrays

  • Kernel events are stored in a bit array (an array, where each bit (0/1) indicates (False/True) if an event has occured).
  • When an event occurs, it is posted (k_event_post).
  • A state machine can wait (k_event_wait) for an event (or events) to occur.
  • Events can be cleared (k_event_clear) after they are processed.

Why Kernel Events over Boolean Variables?

  • Consume less memory.
  • Easier to pass between threads / functions.
  • Can wait for multiple events to occur without having to conditionally test for them.

How to Define Kernel Events

  • Kernel events are defined in a k_event structure.
K_EVENT_DEFINE(temp_events);

#define TEMP_TOO_HIGH_EVENT BIT(0)
#define TEMP_TOO_LOW_EVENT BIT(1)

// somewhere in your code, you can post an event

k_event_post(&temp_events, TEMP_TOO_HIGH_EVENT);

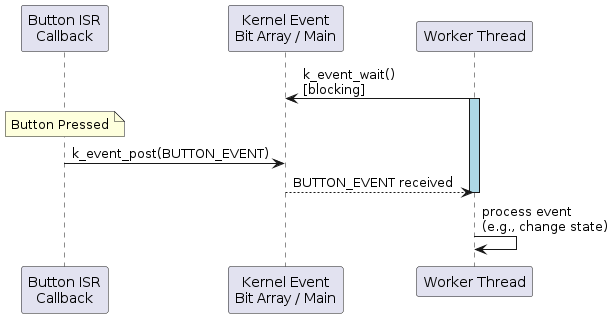

Waiting for Events

  • With kernel events, we can now implement a thread that waits for an event to occur and then changes the state of the state machine.
  • Threads are started when your firmware is initialized; it does not need to be “called” (like a function).
/* 1024 byte stack, handler, NULL, NULL, NULL, priority 5, no time slice, no delay */
K_THREAD_DEFINE(temp_too_high_thread_id, 1024, temp_too_high_thread, NULL, NULL, NULL, 5, 0, 0);

extern void temp_too_high_thread(void *, void *, void *) {

    // need to loop to keep the thread running after the first error occurs
    while (1) {

        /* &temp_events is a pointer to an event bit array
           0xF is an example of a bit mask of events in the array to wait for - any, not all
           true clears all of the events that may have previously been posted before waiting
           K_FOREVER means wait indefinitely (this could be a finite period of time instead)
        */
        uint32_t events = k_event_wait(&temp_events, 0xF, true, K_FOREVER);
        // can also define the bit mask as a logical operation of the individual bits
        // uint32_t events = k_event_wait(&temp_events, TEMP_TOO_HIGH_EVENT | TEMP_TOO_LOW EVENT, true, K_FOREVER);
        // events is an int representation of the  bit mask of the events that were posted

        // if you want to wait for **ALL** events in the mask, use
        // k_event_wait_all() instead of k_event_wait()

        LOG_INF("Temperature Event Posted: %d", events); // bit array mask output as an int

        shut_down_system(); // do something in response to the temperature event, like change states
    }
}
