Zephyr: Serial Communication

BME554L -Fall 2025 - Palmeri

Author
Affiliation

Dr. Mark Palmeri, M.D., Ph.D.

Duke University

Published

Invalid Date

Serial vs. Parallel

What is Serial Communication?

Send data one bit at a time, sequentially, over a single wire; in contrast to parallel communication, where multiple bits are sent as a whole, on multiple wires.

Common examples:

  • RS-232
  • USB
  • SATA/SCSI
  • PS/2
  • Ethernet
  • HDMI/DVI
  • PCIe (not PCI!)

Why Serial over Parallel?

  • Parallel communication can communicate more bits / clock cycle, but serial links can be clocked much faster.
  • No clock skew between bits
  • Fewer cables / connections (cheaper)
  • Better isolation from noise / interference / crosstalk

Universal Asynchronous Receiver/Transmitter (UART)

UART is an asynchronous serial communication protocol. It is a common peripheral on microcontrollers, and is used to communicate with other devices, such as sensors, over a serial link.

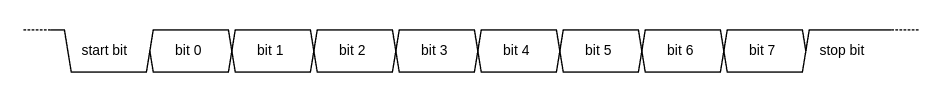

  • Start bit is usually LOW, followed by 8 bits of data.
  • A parity bit–conveying an even of odd data stream–can be used for error checking.

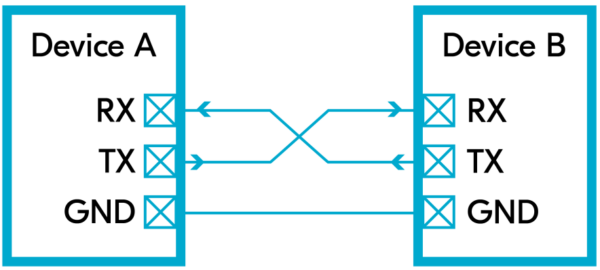

Tx/Rx without Flow Control

  • RX senses the start bit and then stores the subsequent bits in a shift register (making a “word”).
  • The data baud rate between TX:RX needs to be established between the two devices. This is typically 9600 or 115200 bits/s.

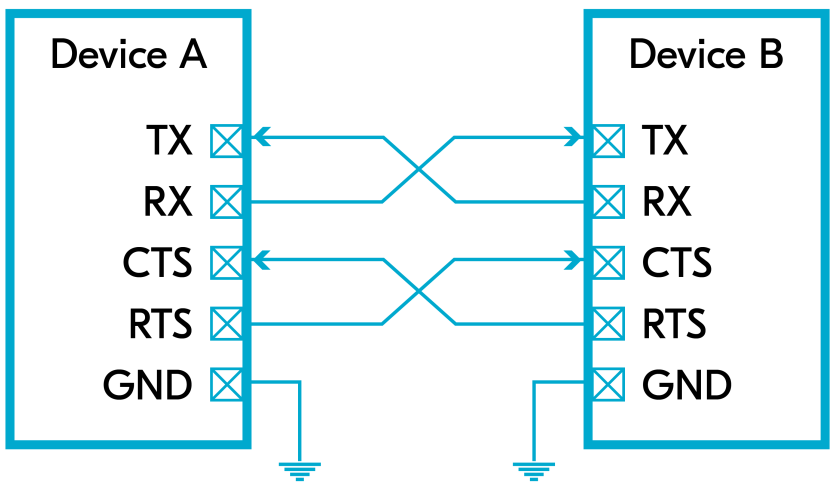

Tx/Rx with Flow Control

  • RTS (Request to Send)
  • CTS (Clear to Send)
  • UART ISRs are triggered by RTS and CTS events.
  • High-priority event helps avoid missing data, but can cause starvation of other tasks.
  • Low-priority event can cause data loss, but allows other tasks to run.
  • Multi-threaded RTOS can be much more robust than a single-threaded super-loop system.

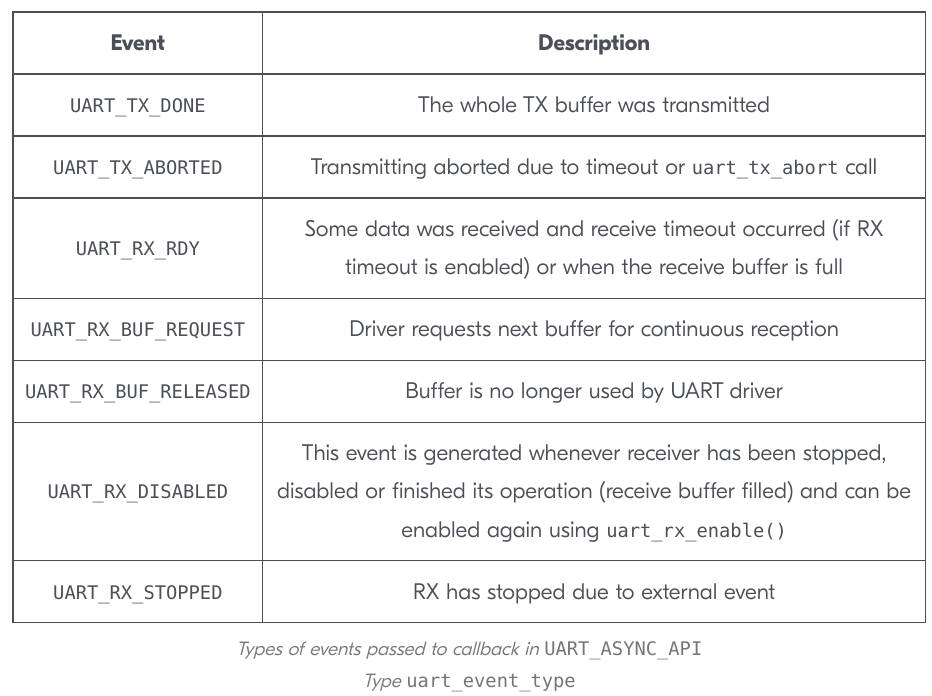

UART Firmware API Events

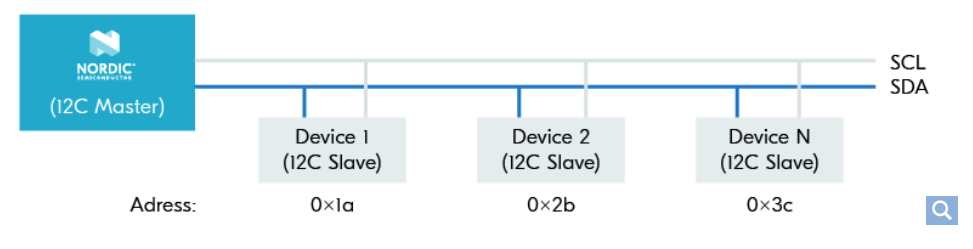

Inter-Integrated Circuit (I2C)

  • Widely-used 2-wire serial communication protocol.
  • Limited to short distances.
  • SCL: serial clock
  • SDA: serial data
  • Common data communication rates: 100, 400, & 1000 kbps
  • Access data using simple read() and write() functions.
  • Multiple devices, with unique addresses, can be connected to the same bus.

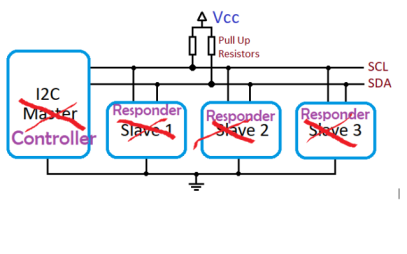

Alternative Master/Slave Terminology

  • Primary/Secondary
  • Controller/Peripheral
  • Controller/Responder
  • Parent/Child

Nordic TWI (Two-Wire Interface)

Nordic’s I2C implementation is called TWI (Two-Wire Interface).

UART vs. I2C

  • UART is a point-to-point protocol, while I2C is a multi-point protocol.
  • UART is asynchronous (2-way communication, full duplex), while I2C is synchronous (half duplex, needs CLK).
  • Both are “slow”, but I2C is faster.
  • UART is simpler to implement, but I2C is more robust.

SenseWire (I3C)

  • 2-pin superset of I2C (backward compatible)
  • Lower power and space requirements
  • Higher data rates
  • Dynamic address assignment
  • “Hot” peripheral connection

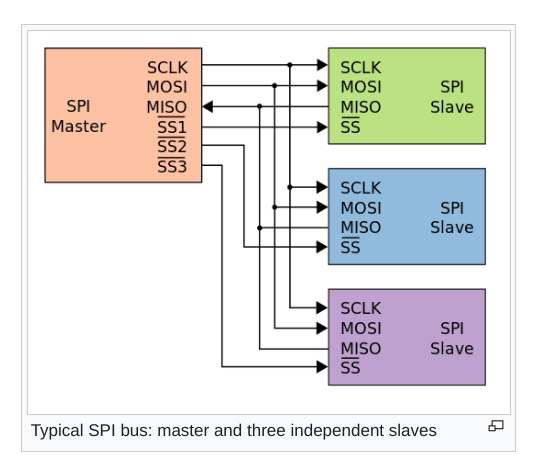

Serial Passing Interface (SPI)

  • Like I2C, but allow for full duplex (concurrent send/receive of data).
  • Needs 4 wires:
    • MOSI: master out, slave in
    • MISO: master in, slave out
    • SCLK: serial clock
    • SS: slave select (LOW to select)
  • SS instead of device address

I2C vs. SPI

  • Higher data speeds than I2C (e.g., SD card)
  • More complicated connectivity scheme for multiple peripherals

Zephyr: Sensors

  • The reading of data from sensors is so common that Zephyr provides a common API for accessing them.
  • Channels: measurable quantities (e.g., temperature, humidity, acceleration, etc.)

Fetching & Getting Data

  • Fetching data from a sensor is done using sensor_sample_fetch() function. Fetching stores the data in a buffer on the sensor.
  • Getting data from the sensor is then done using sensor_sample_get(). Getting reads the data from the buffer and returns it to the user.
    • A sensor can have multiple channels, and each channel can have multiple samples.
    • Sensor channels are specified using a sensor_channel enum: sensor_channel
  • sensor_value struct of 2 ints
    1. int32_t val1: integer part of value
    2. int32_t val2: fractional part of value

Helper Functions

Example Firmware

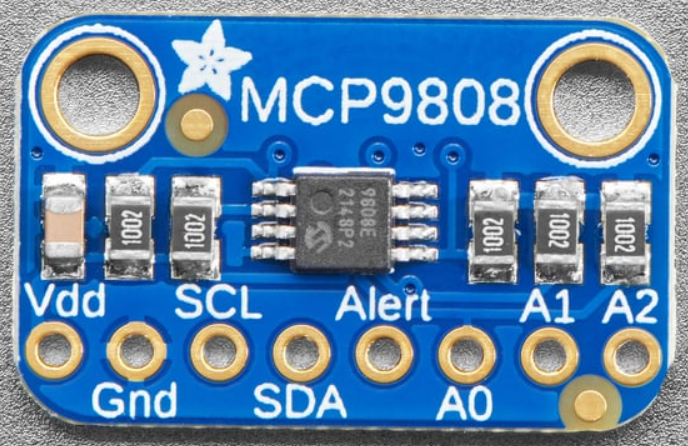

Example Connection of MCP9808 Temperature Sensor

Breakout Board DK GPIO Pin
SDA P0.26
SCL P0.27
Vdd VDD
GND GND

MCP9808 Temperature Sensor

prf.conf

CONFIG_SENSOR=y

nrf52833dk_nrf52833.overlay

/* I2C Pin Mapping
SCK: P0.27
SDA: P0.26
*/
&i2c0 {
    mcp9808@18{
        compatible = "jedec,jc-42.4-temp";
        reg = <0x18>;
        status = "okay";
    };

};

main.c

#include <zephyr/kernel.h>
#include <zephyr/device.h>
#include <zephyr/logging/log.h>
#include <zephyr/drivers/sensor.h>  // prf.conf -> CONFIG_SENSOR=y
#define MEASUREMENT_DELAY_MS 1000
LOG_MODULE_REGISTER(main, LOG_LEVEL_DBG);

int read_temperature_sensor(const struct device *temp_sensor, float *temperature_degC);

// the microchip,mcp9808 cannot be accessed in the DT by alias
// instead, have to directly access the node name, with comma replaced by underscore
const struct device *const temp_sensor = DEVICE_DT_GET_ONE(jedec_jc_42_4_temp);

static float temperature_degC;

int main(void) {

    int ret;

    if (!device_is_ready(temp_sensor)) {
        LOG_ERR("Temperature sensor %s is not ready", temp_sensor->name);
        return -1;
    }
    else {
        LOG_INF("Temperature sensor %s is ready", temp_sensor->name);
    }
    // read the temperature every MEASUREMENT_DELAY_MS
    while (1) {
        ret = read_temperature_sensor(temp_sensor, &temperature_degC);
        if (ret != 0) {
            LOG_ERR("There was a problem reading the temperature sensor (%d)", ret);
            return ret;
        }
        LOG_INF("Temperature: %f", (double)temperature_degC);
        k_msleep(MEASUREMENT_DELAY_MS);
    }
    return 0;
}
int read_temperature_sensor(const struct device *temp_sensor, float *temperature_degC) {
    /*  Fetch-n-get temperature sensor data
        INPUTS:
            temp_sensor (const struct device *) - temperature sensor device
            temperature_degC (float *) - pointer to store temperature in degrees Celsius
        RETURNS:
            0 - success
            Otherwise, error code
    */
    struct sensor_value sensor_vals = {.val1 = 0, .val2 = 0};
    int err = sensor_sample_fetch(temp_sensor);
    if (err != 0) {
        LOG_ERR("Temperature sensor fetch(): %d", err);
        return err;
    }
    else {
        // sensor channels: https://docs.zephyrproject.org/latest/doxygen/html/group__sensor__interface.html#gaaa1b502bc029b10d7b23b0a25ef4e934

        err = sensor_channel_get(temp_sensor, SENSOR_CHAN_AMBIENT_TEMP, &sensor_vals);
        if (err != 0) {
            LOG_ERR("Temperature sensor get(): %d", err);
            return err;
        }
    }

        // data returned in kPa
        *temperature_degC = sensor_value_to_float(&sensor_vals);
        LOG_INF("Temperature (deg C): %f", (double)*temperature_degC);
        return 0;
}
