C Programming

BME554L -Fall 2025 - Palmeri

Author

Affiliation

Dr. Mark Palmeri, M.D., Ph.D.

Duke University

Published

Invalid Date

Binary Data

Why Base2?

Binary states: HIGH and LOW
LOW is commonly GND
HIGH is commonly either 5, 3.3 or 1.8 V.
Why binary? Electronics really can only represent On and Off states at the lowest level in hardware.

Binary (Base2) Numbers

base10 (decimal): 0-9 in summed powers of 10.
base2 (binary): 0, 1 in summed powers of 2.
Convert binary to decimal: \(a_n2^n + a_{n-1}2^{n-1}+\dots+a_12^1+a_02^0\), where \(a_n\) is the \(n^{th}\) bit in the binary number:
- For example, for the binary number 0b101 (where ‘0b’ means the number is represented in binary), the first 1 (from left to right) is in the 2nd bit spot, the 0 is in the 1st bit spot, and the second 1 is in the 0th bit spot.
- Using the above formula results in \(1*2^2 + 0*2^1 + 1*2^0 = 4 + 0 + 1 = 5\)

Common Binary Number Word Lengths

Word: Number of bits to use to express a value

Bit Depth	Name	Example
1	Bit	0
4	Nibble	1001
8	Byte	10011011

“Standard” word length can be system architecture dependent (16-, 32- or 64-bits)

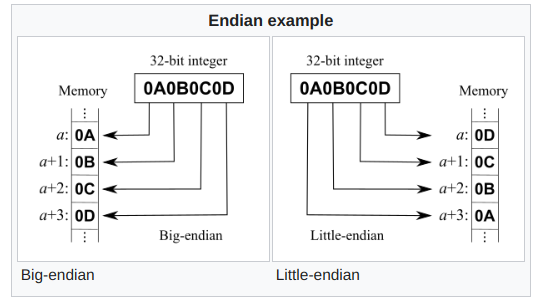

Endianness

The bits–or bytes–of a word can be organized from most significant to least significant or vice versa; this order is referred to as endianness.

https://en.wikipedia.org/wiki/Endianness

Data Encoding

Raw binary data (bits) can quickly become cumbersome to read and write. To make data more human readable, we can encode it into a more compact form.

Hexadecimal (Base16)

base16 (hexadecimal): 0-9, A-F in summed powers of 16 (0-15).
A single character represents a nibble.
Hex is indicated by a leading 0x or 16 subscript: 22546 = 0x5812 = 5812₁₆

https://en.wikipedia.org/wiki/Hexadecimal

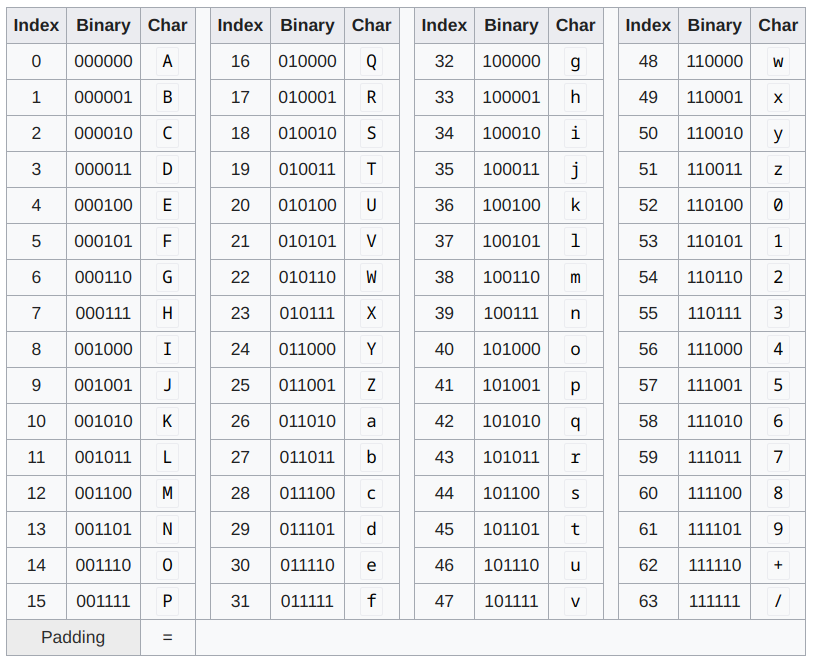

Base64

https://en.wikipedia.org/wiki/Base64

Text Encoding

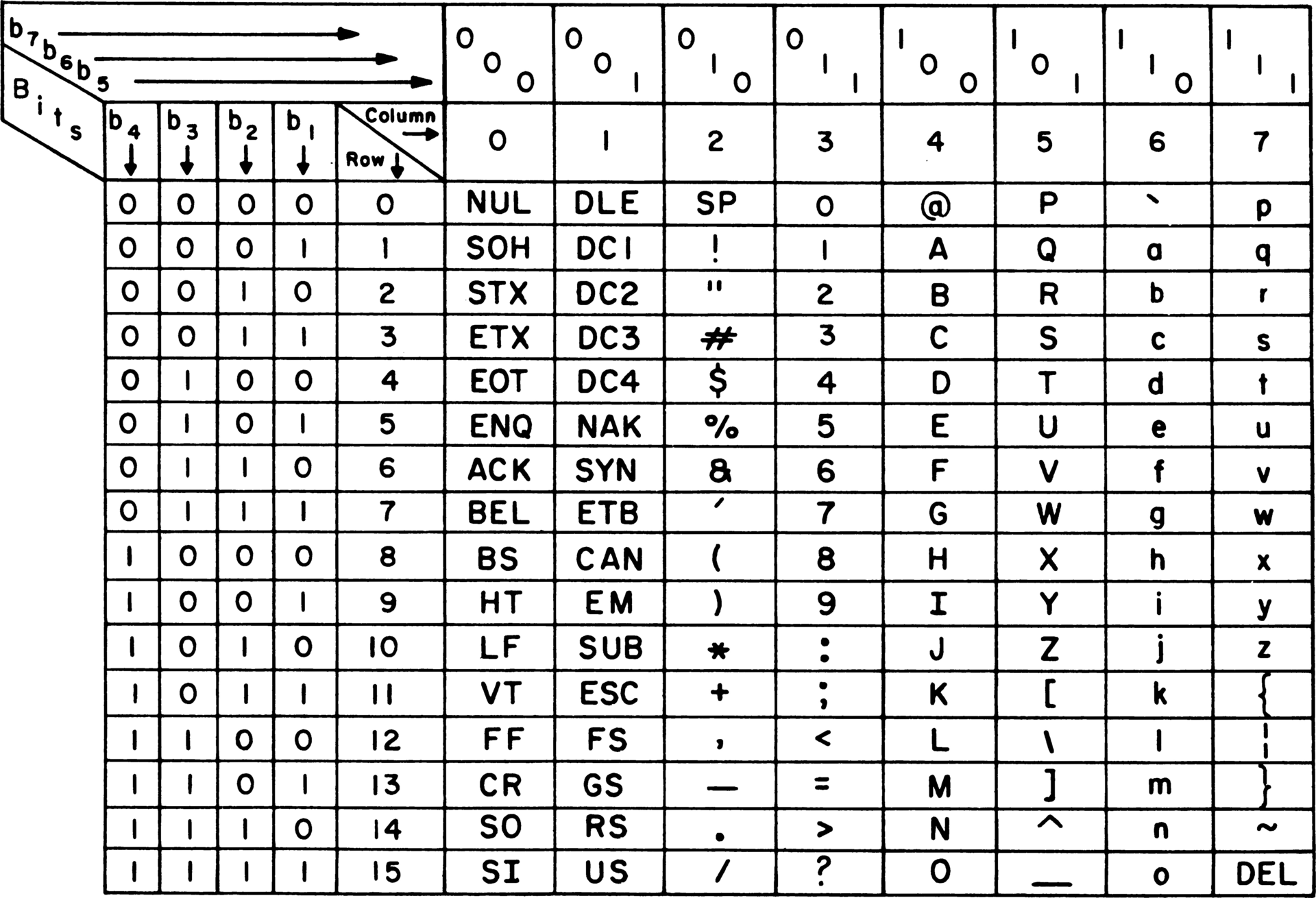

ASCII

https://en.wikipedia.org/wiki/ASCII

UTF-8

https://en.wikipedia.org/wiki/UTF-8

Data Types (C)

Name	Bit Depth	Value Range
bool	1 or 8	true/false (1/0)
byte	8	0-255 (unsigned)
char	8	-128-127 (signed)
int	16	-32768-32767 (signed)
uint	16	0-65535 (unsigned)
long	32	-2147483648-2147483647 (signed)
float	32	1.2E-38–3.4E38 (signed)
double	64	2.3E-308-1.7E308 (signed)

How are floating point numbers represented?

Declaring Variables by Data Type (C)

Matlab, by default, declares variables when first used, and defaults all numerical data to be double (64-bit floating point).
Python infers data type based on the value assigned to the variable.
In C, we must explicitly declare the data type of a variable, and the data type cannot change over the life of the variable.

Why not just make all numbers floats/doubles?

The nRF52833 only has 128 kB of RAM. If we can use smaller data types, we can store more data in memory.


int16_t my_int = 5; // 16-bit signed integer
uint16_t my_uint = 5; // 16-bit unsigned integer
float my_float = 5.0; // 32-bit floating point

Variable Scope

Variables can be limited in their scope (where they are accessible).

Global variables are defined outside of functions and are globally available to everything in your program.
Local variables are defined inside of functions and are only visible within that function.

#include <zephyr/kernel.h>

int my_global_variable; // global variable

void my_function(int my_input) {
  int my_local_variable; // local variable
  // do something
}

Constants

Variables that have values that will not change can be declared as Constants (const).
Constant variables consume a fixed amount of memory based on their data type when they are declared and defined.

MACROS

MACROS are preprocessor directives that are replaced with their values (constants of function definitions) before the code is compiled.
MACROS save memory compared to using constant variables and can improve readability.
Defined with the #define directive after #include preprocessor directives and are typically typed in ALLCAPS.

#include <zephyr/kernel.h>

#define MY_MACRO 1

void my_function(int my_input) {
  // do something
  int a = MY_MACRO * my_input;
}

Static Variables

Static variables that are local variables in functions retain their value between function calls (exit and re-entry).
Static global variables are only scoped within the file they are defined in.
Static variables get their own memory space that is not shared with other variables that are more dynamically allocated.

#include <zephyr/kernel.h>

void my_function(int my_input) {
  static int my_static_variable = 0; // static local variable
  my_static_variable += my_input;
  printk("The value of my_static_variable is %d\n", my_static_variable);
}

Typecasting

Use different data types in mathematical operations can lead to unexpected results.

Warning

Watch out for integer math (fixed point) that will yield a non-integer (floating point) result.

void main(void) {
  int a = 5;
  int b = 3;
  float c;

  c = a / b; // c = 1.0
}

Typecasting is performed by placing the desired data type in parentheses before the value or variable.
Once a typecasted variable is encountered in the expression (by order of operations), then the rest of the operation is performed in that typecast unless typecasted again.

int a = 5;
int b = 3;
float c;

c = (float)a / b; // b is typecasted to float
                  // because a is typecasted to float

Bit Depth

Warning

Watch out for the range of your data type! If your mathematical operation exceeds the min/max value of the bit depth, the data will “wrap around”.


uint8_t a = 255; // 8-bit unsigned integer

a = a + 1; // a = 0

Printing / Logging Data Types

Formatted Print Placeholder	Data Type
`%d`	decimal (int)
`%ld`	long decimal (32-bit)
`%lld`	long long decimal (64-bit)
`%u`	unsigned decimal (uint)
`%f`	float
`%c`	char
`%s`	string (char array)
`%x`	hex (int)
`%b`	binary (int)
`%p`	pointer (memory address)

printk("The value of a is %d\n", a); // %d must match the data type of a to properly print its value

Pointers

One of the greatest strengths–and most dangerous aspects–of C is the use of pointers. A pointer is a variable that stores the memory address of another variable. Pointers are used to pass variables by reference (in contrast to value) to functions, and to dynamically allocate memory.

Pointers save memory and time by not copying the value of a variable to a function. Instead, the function can directly access the variable in memory. This is especially useful for large data structures.

int a = 5;

void my_function(int *a_ptr) {  // *a_ptr is a pointer to int a
  *a_ptr = 10; // dereference a_ptr to change the value of a
  // note no value is returned; it is assigned directly to the memory address
}

void main() {
  printk("The value of a is %d\n", a); // prints 5
  my_function(&a); // pass the memory address (&) of a to my_function
  printk("The value of a is %d\n", a); // prints 10
}

General C Code Structure

Organization of C code is very important! Developers will “expect” certain things to be in certain places.
C code is compiled (built) into a binary executable that is loaded onto the microcontroller. It is not “run” on-the-fly as an interpreted language like Matlab or Python.

#include <zephyr/kernel.h>  // include system libraries
#include "my_great_library.h" // include your own libraries

#define MY_MACRO 1 // define MACROs

void my_function(int32_t my_input); // function prototype

int32_t my_global_variable; // global variable

void my_function(int32_t my_input) { // function definition
  // do something
  // no return b/c of void return type
}

Coding Style

All lines of code must end with a semicolon ;.
Indentation helps with readability, but does nothing to delineate code blocks.
Code blocks are delineated by curly braces {}.

Functions

Return Types/Codes

Most C functions will return a value, but that value tends to be an exit code, not a value being assigned to a variable.
These codes are used to indicate the success or failure of the function, and tend to be ints.
Returned 0 indicates success, and any other value indicates failure.
The return type is defined in the function prototype.
If the function does not return a value, the return type is void.

int my_function(void) {
  // do something
  return 0; // return 0 for success
}

void main(void) {
  int return_code = my_function();
  if (return_code) {
    printk("Failure!\n");
  } else {
    printk("Success!\n");
  }
}

Function Arguments

Function arguments are defined in the function prototype.
Most of our arguments will be passed by reference (pointers to memory addresses), not value. This means that the function will be able to change the value of the variable passed to it by pointer reference.
If the function does not take any arguments, the argument list is void. The function may still operate on variables if they are global.

`main`

In Zephyr, the primary source code file is src/main.c.
In Zephyr (and many other C frameworks), the main() function is the entry point of the program.

Fun Data Structures

Arrays

Arrays are a contiguous block of memory that can store multiple values of the same data type.
Arrays are declared with a fixed length.
Arrays are indexed starting at 0 (not 1!).
Arrays can be declared with an initial value, or initialized later.
- int my_array[5] = {1, 2, 3, 4, 5};
- int my_array[5] = {0};
- int my_array[5];
The only time to populate all of the elements of an array is when it is initialized. Otherwise, you can:
- Populate each element individually (e.g., a for loop), or
- Create a new array and then copy it over the existing array using memcpy().

Enumerations (Enums)

Enums are a way to assign a name to a value.
Enums are declared with a fixed length.
Enums are indexed starting at 0 (not 1!).
Very useful for more verbose / readable switch/case statements.

enum Level {
  LOW,    // by default, 0
  MEDIUM, // 1
  HIGH    // 2
};

void main(void) {
  enum Level my_level = MEDIUM;

  switch (my_level) {
    case LOW:
      printk("Low level\n");
      break; // break out of switch statement
    case MEDIUM:
      printk("Medium level\n");
      break;
    case HIGH:
      printk("High level\n");
      break;
    default:
      printk("Unknown level\n");
      break;
  }
}

Structs

Structures group multiple variables together.
Structures are declared with a fixed length.
Nice data structure to organize variables that are related to each other.

struct Person {
  char name[50];
  int age;
  float height;
};

void main(void) {
  struct Person my_person = {"John", 32, 1.8};

  printk("My name is %s\n", my_person.name);
  printk("I am %d years old\n", my_person.age);
  printk("I am %f meters tall\n", my_person.height);
}

Flow Control

Conditional Statements

if (a == 5) {
  // do something
} else if (b != 3) {
  // do something else
} else {
  // do something else
}

Loops

for (int i = 0; i < 10; i++) {
  // do something
}

while (a < 10) {
  // do something
  a++;
}

while () {
  // do something
  if (a == 10) {
    break; // break out of loop
  }
}

Project Libraries

Writing your own libraries is a great way to organize your code and make it more readable.
Libraries can also be shared with others and re-used in other projects.
#include "your_library.h" can be used to include a library in your source code.
A library contains a pair of files:
1. your_library.h contains the function prototypes and macro definitions.
2. your_library.c contains the function definitions.
To make sure that a library doesn’t get included multiple times, use the following syntax in your header file:

#ifndef YOUR_LIBRARY_H
#define YOUR_LIBRARY_H

// function prototypes and macro definitions

#endif

The definition of the macro YOUR_LIBRARY_H is tested for, and it is defined, then it has already been included into the code.
In your library source code (your_library.c), you need to include this header file:

#include "your_library.h"

CMake Build System

Zephyr uses cmake as its build system, which helps link libraries used in your source code.
You will also need to add the library to your CMakeLists.txt file:

target_sources(app PRIVATE src/main.c src/your_library.c)

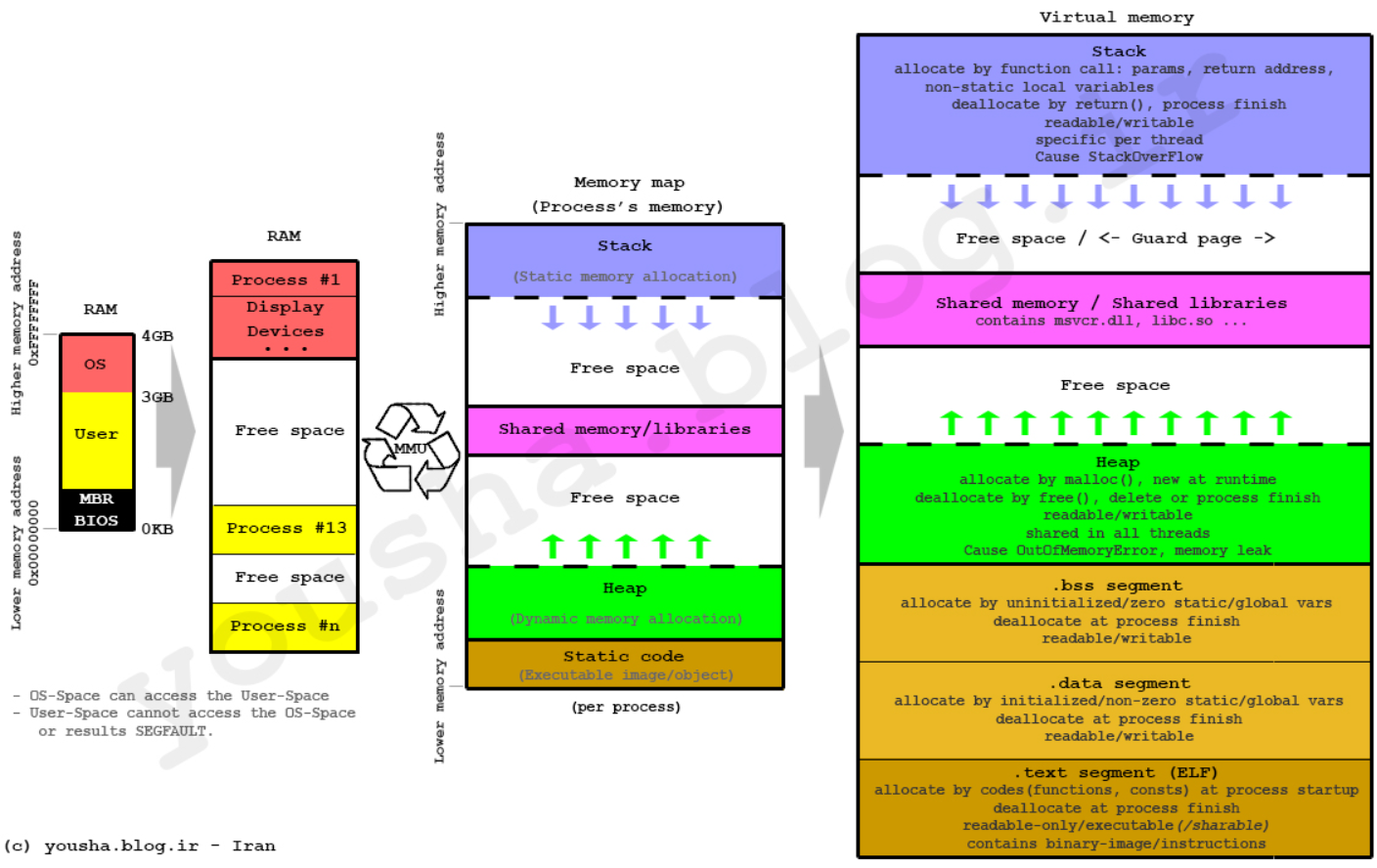

Memory Management

A great summary of the different types of memory in C is summarized below from http://www.gotw.ca/gotw/009.htm:

Const Data

Stores string literals and other data whose values are known at compile time.
All data in this area are available during the entire lifetime of the program.
All of these data are read-only; trying to modify it is undefined.

Stack

Stores automatic variables.
Typically allocation is much faster than for dynamic storage (heap or free store) because a memory allocation involves only pointer increment rather than more complex management.
Objects are constructed immediately after memory is allocated and destroyed immediately before memory is deallocated, so there is no opportunity for programmers to directly manipulate allocated but uninitialized stack space (barring willful tampering using explicit dtors and placement new).

Free Store

The free store is one of the two dynamic memory areas, allocated/freed by new/delete.

Heap

The other dynamic memory area, allocated/freed by malloc()/free() and their variants.

Global/Static

Global or static variables and objects have their storage allocated at program startup, but may not be initialized until after the program has begun executing.
